Product Description
RMUS is working closely with our research clients and Outreach Robotics for mission specific solutions.
Prices posted are estimates. We create packages to suite your mission specific needs. Please contact RMUS at the number at the top of the page or email sales@rmus.com. We can create a customized quote so you can issue a purchase order.
Designed to be compatible DJI’s Matrice 300 series, and we are working on compatibility with the RTR HERA NDAA compliant drone.

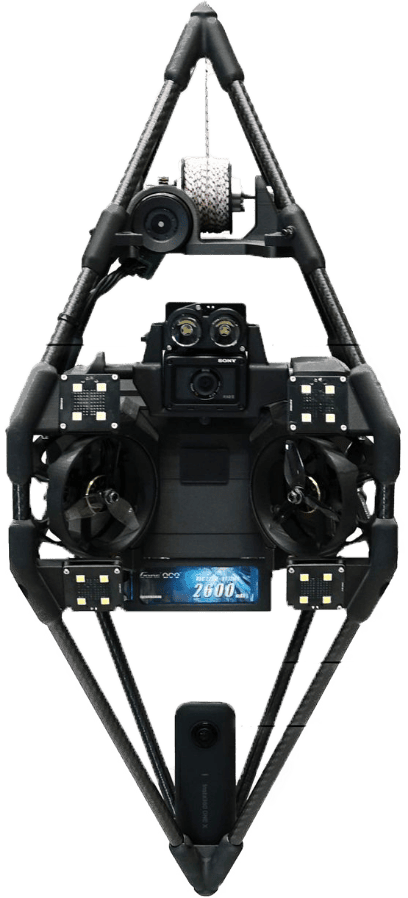

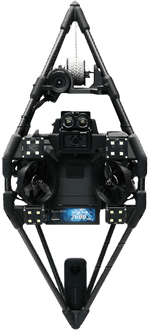

Spy II Payload
This Payload can be operated independent from the Drone.
The Spy II inspection system was designed to inspect the most challenging locations securely. Its patent pending propeller arrangement enables accurate and crystal clear visual inspection. Its ability to work in GPS-denied settings, collision recovery capability, and tremendous versatility make it easy to adapt to your specific application. Thanks to the design of its propeller, you can remotely point your professional camera at any location to look around every corner. The Spy II inspection system has been tested in hydroelectric dams, commercial chimneys, and manholes and has demonstrated its reliability in all of these challenging environments.
SPECS
CONFIGURATION
Four propulsion units, Antagonist configuration, Planar orientation
DIMENSIONS (CAGE)
10.1 X 10.1 X 27 Inches
DIMENSIONS (PELICAN CASE)
17.1 X 13.3 X 31.1 Inches
WINCH CABLE LENGTH
0-45 m
TOTAL WEIGHT
3.3 kg
MAX AUTONOMY
55 min (using 2.6 Ah battery)
MAIN CONTROLLER
CUAV X7 flight controller (specsheet here)
MATERIALS
Carbon fiber composites, Carbon fiber reinforced Nylon 3D printing, aeronautical grade aluminum, 18-8 Stainless Steel fasteners
OPERATING TEMP.
-1O 0c to 50 °c
REMOTE CONTROLLER
Herelink system
VIDEO TRANSMISSION
FCC 20km CE/ SRRC 12km Image transmission delay: :'S'. 11Oms
MAIN CAMERA
SONY RX0 II 15.3 Megapixels., 20 cm minimum focus distance
360 CAMERA
lnsta360 Virtual Tour Kit
DISTANCE SENSOR
TeraRanger Evo 15m (range finder)
AMBIENT LIGHT MODULES
4 x 2,000 lumens, remote controlled, dimmable
BEAM LIGHT
1,000 lumens, 10 m lens focal distance
