Realize longer, accurate flights and high precision data capture for industrial applications with Airpeak S1 enterprise solution. The enterprise solution includes Sony’s Airpeak S1 professional drone and a variety of accessories that provide the functionality necessary for industrial use.

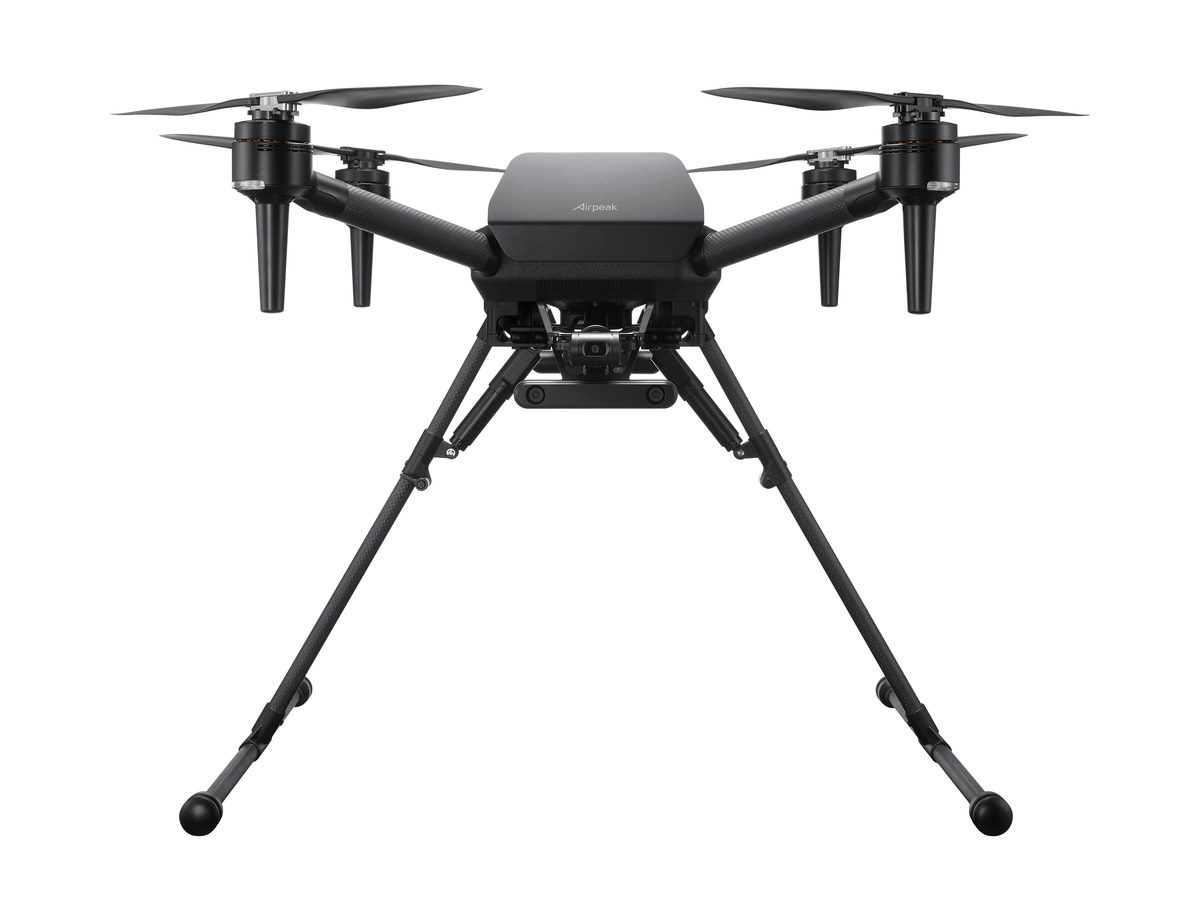

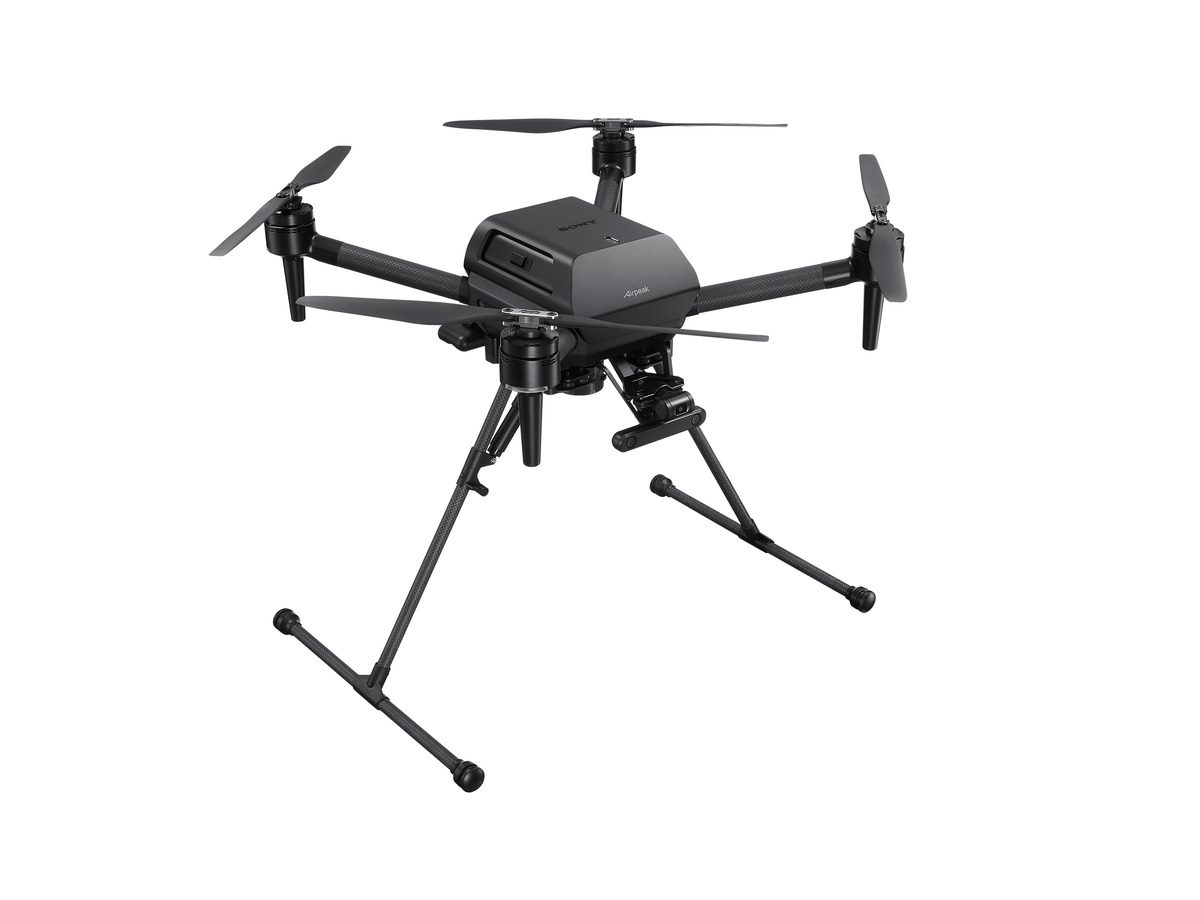

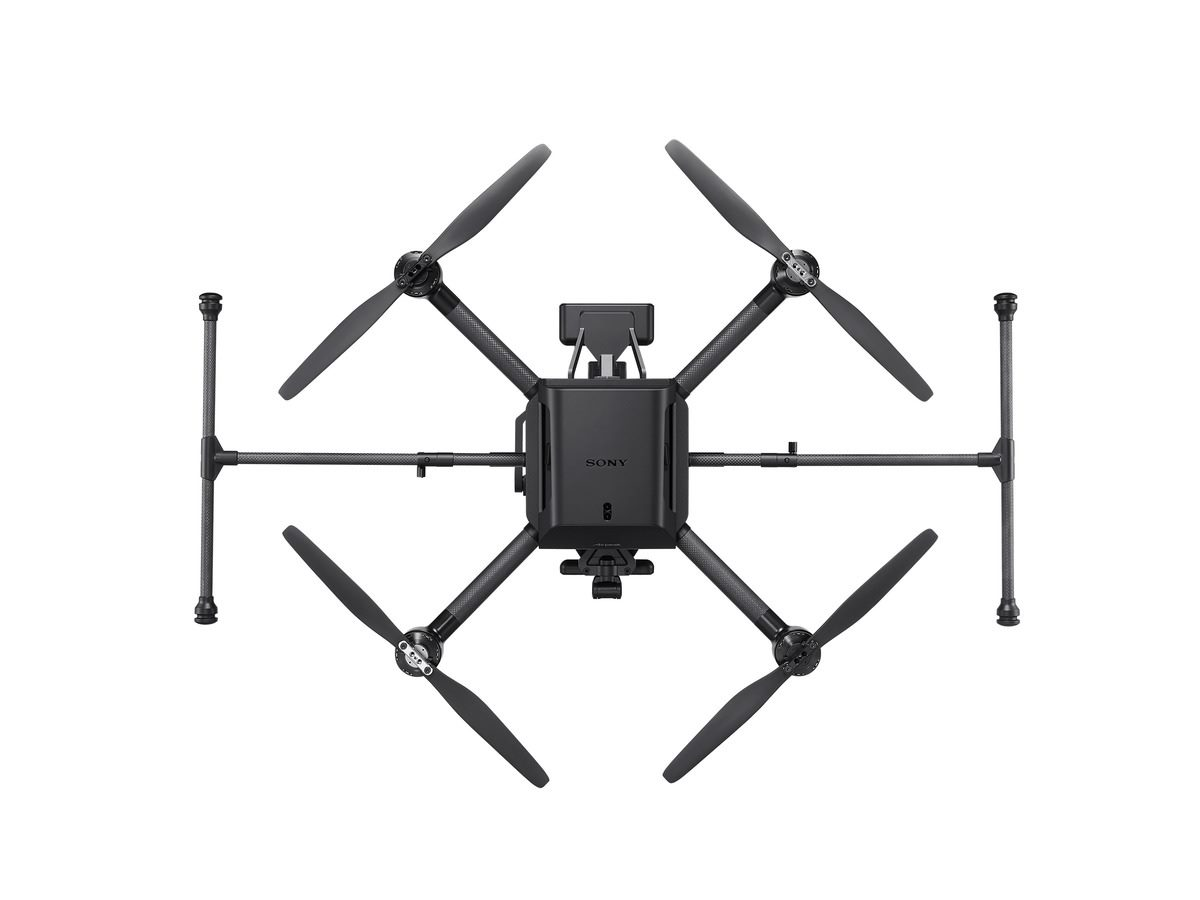

Sony Airpeak S1
With turnkey integrated RMUS payloads
RTK flight accuracy and high precision data acquisition
Multiple configurations for use with included base station or GNSS correction data service
Supporting both network-type and base station type RTK as well as PPK logging provides use in a wide variety of work environments.
Enables recording of positioning information with accuracy within a few centimeters
RTK enables accurate positioning with accuracy within a few centimeters, compared with GNSS with accuracy within a few meters. The positioning information is synchronized with high precision with the timing of image data capture, and the recorded position is offset to the center of the image sensor.
Stable flight even with strong magnetic field interference
Two GNSS antennas enable stable flight even in an environment where the geomagnetic sensor may affect the aircraft’s control due to the influence of inspection objects or surrounding structures.
Accurate flight with low-error self-position estimation
Self-position estimation with less error is achieved by using RTK in conjunction with vision sensors, improving aircraft handling during deceleration, hovering stability, and automatic flight accuracy. By using Direct Repeat Flight, periodic inspection flows can be reproduced as many times as desired with high accuracy, enabling efficient and highly accurate operations that do not depend on operator skill.
RTK flight accuracy and high precision data acquisition
High wind resistance to prevent being swept away by strong winds
Sony-developed propulsion devices such as propellers, motors, and ESCs, as well as the flight controller achieve wind resistance of up to 44.7 mph (20m/s)*. The aircraft resists being swept away by erratic winds at high altitudes and is stable even in strong winds at coasts and in canyons.
*Without payload
Supports long automated flights
Supports the ability to resume automated flight after it has been interrupted mid-flight, and battery hot-swapping, which allows battery replacement while the aircraft is powered on. Achieves approximately 20 minutes* of flight time while equipped with RTK and high-resolution camera.
*When equipped with LBP-HM1, RTK-1, GBL-PX1, Alpha 7R IV A, FE 35mm F2.8 Zeiss, cruising speed(9m/s) , sea level, no wind
RMUS Payloads for Sony Airpeak S1Enterprise
Low Light Optical Zoom Payload
- 4.17M pixels (2160p/60fps)1/1.18 sensor
- 30x enhanced optical zoom
- Image stabilization
- Auto ICR
- Wide dynamic range (Wide-D)
- Visibility enhancer
- Noise reduction
- Up to 28-minute flight time on Airpeak S1 Enterprise
Optical Gas Imaging (OGI) Payload
- Reporting software with LDAR data pass off
- Long-life HOT MWIR detector
- 640 x 512 resolution/15μm pixel pitch
- Gas Enhancement Mode colorizes leaks
- Single button to capture and document leaks
- Up to 23-minute flight time on Airpeak S1 Enterprise
EO/IR Dual Payload
- IR – 640x512 thermal resolution
- IR – Capable of radiometric and non-radiometric images
- EO - 4.17M pixels (2160p/60fps)
- EO - 30x enhanced optical zoom
- EO - Wide dynamic range(Wide-D)
- EO - Visibility enhancer
- Gremsy Pixy Gimbal
- Up to 23-minute flight time on the Airpeak S1 Enterprise
Sony ILX-LR1 Payload
- Operation Modes: ON/OFF ; Lock mode ; Follow mode / Mapping mode
- New generation IMU Sensor
- Gremsy Specialized Gimbal Drive Motors with Encoders (Encoder 14 bits)
- Sony USB-C 3.0 connection built-in
- Gimbal Mavlink Protocol supported
Sony Airpeak S1 at a glance
Max Flight Time
30 min
(no payload)
20 min with RTK-1, GBL-PX1, ILCE-7RM4A and SEL35F28Z payload
Max Speed
25 m/s
(55.9 mph) without payload, obstacle brake disabled
Weight
6 lb
Main unit only, no batteries
Service Ceiling
8,202 ft
2500 m
Product Specs
Size
Dimensions:
Main unit only: Approx. 20.75(H) x 23.38(W) x 20.25(D) inches*1 *2
When the RTK kit is attached to the aircraft: Approx. 21.25(H) x 23.38(W) x 20.25(D) inches*1 *2
*1 Landing position, without propellers
*2 Approx. 39.88(W) inch(Landing gear is up)
Diagonal Wheelbase:
Approx. 25.5 inch (without propellers)
Weight
Aircraft Weight
Main unit only*: Approx. 6 lb 14.9 oz
When the RTK kit is attached to the aircraft*: Approx. 7 lb 7.2 oz (with GBL-T3 gimbal), Approx. 7 lb 6.9 oz (with GBL-PX1 gimbal)
* Without battery packs
Max Payload:
Approx. 5 lb 9.4 oz
Max Takeoff Weight:
When using Battery Pack LBP-HS1: Approx. 15 lb 5.7 oz
When using Battery Pack LBP-HM1: Approx. 16lb 7.0 oz
Flight Speed
Max Speed:
25 m/s (55.9 mph) without payload, obstacle brake disabled
Max Ascent Speed:
7 m/s (without payload, obstacle brake disabled)
Max Descent Speed:
4 m/s (without payload, obstacle brake disabled)
Acceleration:
Approx. 3.5 seconds (from 0 to 49.7 mph, without payload)
Flight Control
Max Angular Velocity:
Pitch: 180°/s, Yaw: 180°/s, Roll:180°/s (Vision Positioning disabled)
Max Pitch Angle:
55° (Obstacle brake disabled), 35° (Obstacle brake enabled)
Operational Limit
Max Wind Resistance:
20m/s (44.7 mph) (without payload)
Max Gust Resistance*:
15m/s (33.6 mph) (with maximum payload)
* The maximum wind speed at which the travel distance is 1 m or less when receiving a gust from the side during straight flight.
Max Service Ceiling:
8,202 ft（Above Sea Level）
Operating Temperature:
14～104 ℉
Flight Time
Max Flight Time*:
When using Battery Pack LBP-HM1
Approx. 30 minutes（without payload）
Approx. 20 minutes（with RTK-1, GBL-PX1, ILCE-7RM4A and SEL35F28Z）
Approx. 16 minutes（with maximum payload）
When using Battery Pack LBP-HS1
Approx. 22 minutes（without payload）
Approx. 12 minutes（with maximum payload）
*Cruising speed(9m/s), sea level, no wind
Hovering Accuracy
Hovering Accuracy Range:
When the RTK kit is attached to the aircraft（RTK Kit is sold separately）
Vertical：±0.3 ft, Horizontal：±0.3ft（RTK and Vision Positioning enabled）
Vertical：±0.3ft, Horizontal：±0.3ft（GNSS* and Vision Positioning enabled）
Vertical：±1.6ft, Horizontal：±1.6ft（GNSS* enabled and Vision Positioning disabled）
*When not using the RTK function of the RTK kit and performing GNSS single point positioning
Main unit only
Vertical：±0.3ft, Horizontal：±0.3ft（GNSS and Vision Positioning enabled）
Vertical：±1.6ft, Horizontal：±4.9ft（GNSS enabled and Vision Positioning disabled）
Transmission
Operating Frequency:
2.4 – 2.4835 GHz, 5.15 – 5.25 GHz, 5.725 – 5.82 GHz
EIRP:
2.4 – 2.4835 GHz：23.8 dBm, 5.15 – 5.25 GHz：18 dBm, 5.725 – 5.82 GHz：25.6 dBm
Max Transmitting Distance:
2.4 - 2.4835 GHz：1.2 mile
5.15 - 5.25 GHz：0.6 mile
5.725 - 5.82 Ghz：1.2 mile
*Unobstructed, free of interference
Propeller
Model:
PPL1785
Propeller Size:
17 inch
Landing Gear
Landing Gear Position:
Raise and lower
GNSS
GNSS
GPS, GLONASS, QZSS
Sensor
Vision Sensor:
Method: Stereo camera
Direction: Front, back, right, left and downward directions
Operating Environment：Surfaces with clear patterns and adequate lighting
Sensing Range, FOV：1.6 - 177.2 ft, HFOV&VFOV 80°
Infrared Range Sensor:
Method：Infrared, Direction：Up and downward directions
Sensing Range, FOV：0.3 - 6.6 ft、FOV ±20°
FPV Camera
Image Sensor:
1/4 inch 8.17 Mpx CMOS Sensor
Max Frame Rate:
30 fps
FOV:
DFOV 120°
Gimbal Axis:
2 Axises Gimbal (Tilt, Roll)
Package Contents
Package:
ContentsAirpeak S1×1
Landing Gear×2
Battery Pack LBP-HS1 ×2
Battery Charger LBG-H1×1 (includes AC Adapter, Power Code) Propeller PPL1785×2 (Propeller CW ×2、Propeller CCW ×2)
Calibration Board ×1

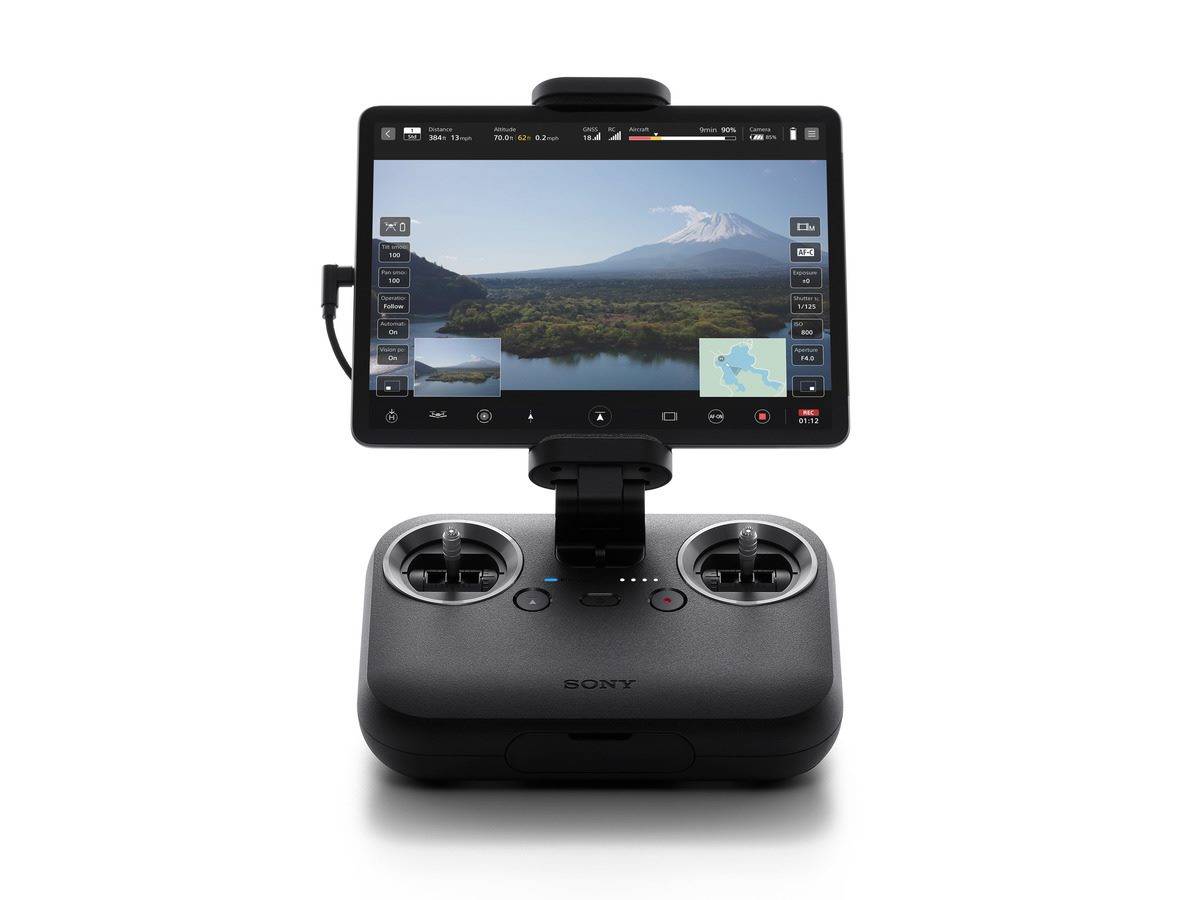

Remote Controller RCR-VH1×1 (includes AC Adapter, Power Code)
Power Cable (Aircraft - Gimbal)×1
Control Cable (Aircraft - Gimbal)×1
USB Type-C Cable (Aircraft - Gimbal)×1
Micro USB Cable (Gimbal - Camera) ×1
USB Type-C Cable (Gimbal - Camera) ×1
Camera & Lens Compatibility
Camera:
ILCE-7M4・ILCE-7RM4A・ILCE-1・ILME-FX3・ILCE-7C・ILCE-9M2・ILCE-7SM3・ILCE-7RM4・ILCE-7RM3・ILCE-7M3・ILCE-9*
Lens:
SELP1635G・SEL14F18GM・SEL20F18G・SEL24F14GM・SEL24F28G・SEL28F20・SEL35F28Z・SEL35F18F・SEL40F25G・SEL50F25G・SEL50F18F・SEL50M28・SEL55F18Z・SEL85F18
Notes:
Use with camera systems (lens filter, hood etc.) weighing less than 1.1 kg.
-When shooting with a wide-angled lens, the aircraft may partly obstruct the shot. Compatible with lens length up to 100 mm to avoid contact with the landing gear or the ground.
-When connecting the camera to the gimbal, use a USB-C cable for USB-C port models. You may need to change the cable pull-out direction, or extend the cable length with certain lenses.
- Some features may not be available with certain camera models or firmware versions.

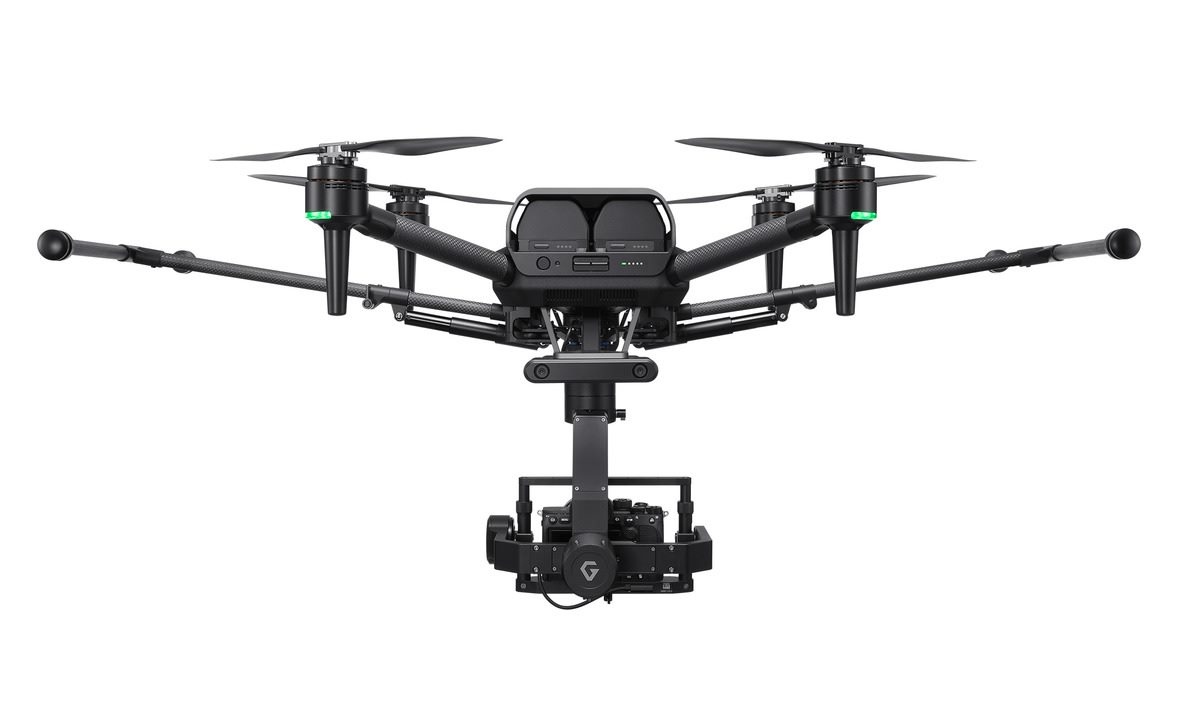

Gimbal Compatibility
Gimbal:
GBL-T3 (Gremsy Gimbal), GBL-PX1 (Gremsy Gimbal)
Compatible Camera Systems
Using with GBL-T3 gimbal
Use with camera systems (lens filter, hood etc.) weighing less than 1.1 kg. When attached RTK kit on the aircraft, camera systems (lens filter, hood etc.) weigh less than 0.9kg. Use with payload under maximum payload weight.
＜Compatible Cameras *1 *2＞
ILCE-7RM5・ILCE-7M4・ILCE-7RM4A・ILCE-1・ILME-FX3・ILCE-7C・ILCE-9M2・ILCE-7SM3・ILCE-7RM4・ILCE-7RM3 ・ILCE-7M3・ILCE-9
＜Compatible Lenses *3＞
Use with lens (including lens filter, hood etc.) weighing less than 460 g. Compatible with lens length up to 100 mm to avoid contact with the landing gear or the ground.
• The following lenses support gimbal presets in the Airpeak Flight app. *4
SELP1635G・SEL14F18GM・SEL20F18G・SEL24F14GM・SEL24F28G・SEL28F20・SEL35F28Z・SEL35F18F・SEL40F25G・SEL50F25G・SEL50F18F・SEL50M28・SEL55F18Z・SEL85F18
Using with GBL-PX1 gimbal
＜Compatible Cameras *1 *2＞
ILCE-7RM5・ILCE-7RM4A・ILCE-7RM4
＜Compatible Lenses *3＞
• Use with lens (including lens filter, hood etc.) weighing less than 180g. Compatible with lens length up to 70 mm.
• The following lenses support gimbal presets in the Airpeak Flight app. *4
SEL24F28G・SEL35F18F・SEL40F25G・SEL50F25G
Notes:
*1 When connecting the camera to the gimbal, use a USB-C cable for USB-C port models. You may need to change the cable pull-out direction or extend the cable length with certain lenses.
*2 Some features may not be available with certain camera models or firmware versions.
*3 When shooting with a wide-angled lens, the aircraft may partly obstruct the shot.
*4 Individual parameters can be set for lenses that do not support gimbal motor presets.
RMUS 360 Solution
Certified Technicians
RMUS employs a team of certified technicians that oversee each Sony Airpeak S1. They perform a highly detailed inspection, calibration and testing process on each Sony Airpeak S1.
Ready-to-Deploy Package
RMUS leverages our experience in multiple industries to create “Ready-to-Deploy” packages that include all the necessary hardware, software, and auxiliary items for successful field operations.
Sony Airpeak S1 Training Package
RMUS includes a complimentary online training class with every Sony Airpeak S1 package to ensure that our customers have a strong understanding of the platform and payload.
We offer the best prices and will price match. We offer significant discounts to law enforcement agencies, emergency service organizations, government entities, educational institutions and other qualified organizations.
